DZ-DUO TWIST
![DZ DUO STAR](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-DUO-STAR-1.jpg)
Cartoner with a rate of 400/500 capsules/minute.
Packagings up to 4 heights
Twist Mosaic Presentation
Up to 4 heights
Mosaic Twist
DZ DUO TWIST

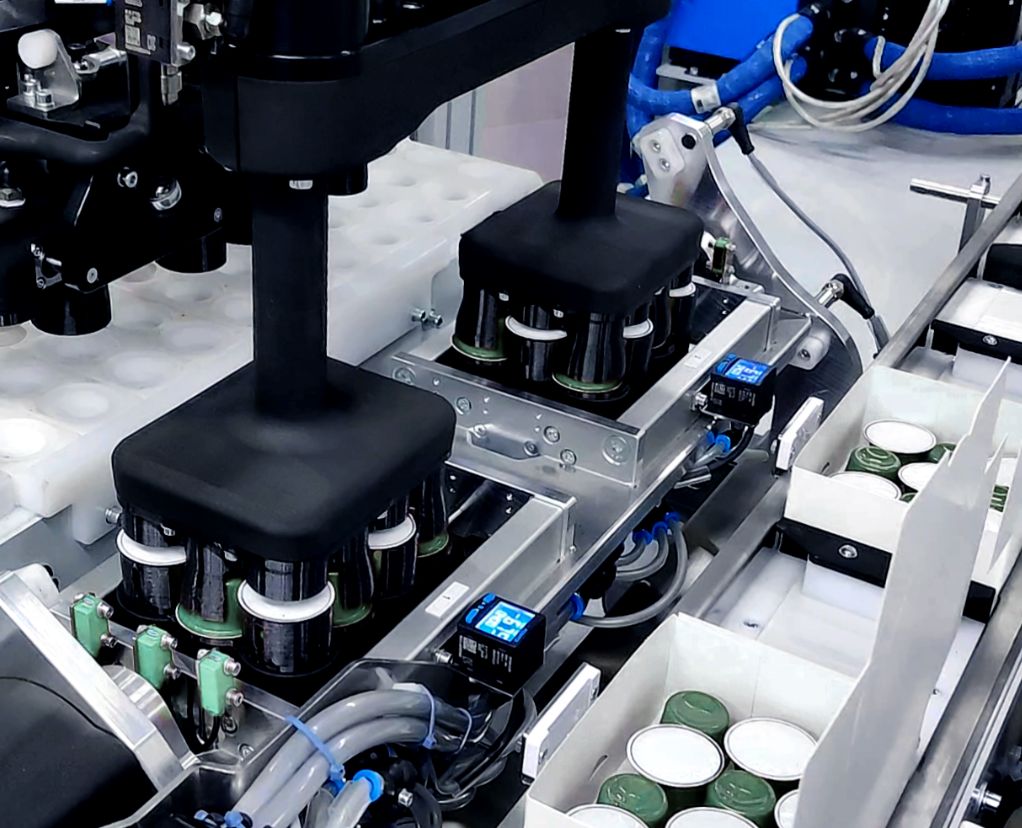

Our most versatile cartoner: it works with cases up to 4 heights, in twist mosaic and a rate of 400/500 cap/min.
![DUO-2](https://www.imasdsl.com/wp-content/uploads/2023/10/DUO-2.png)
Type of capsules
![](/wp-content/uploads/2023/10/DZ.jpg)
DELIZIO
![](/wp-content/uploads/2023/10/TU-CAPSULA.jpg)
YOUR CAPSULE
Models
It contains the main capsule models on the market, adapting to specific formats and sizes.
![](/wp-content/uploads/2023/10/DZ.jpg)
DELIZIO
![](/wp-content/uploads/2023/10/TU-CAPSULA.jpg)
YOUR CAPSULE
![](/wp-content/uploads/2023/10/ALUMINIO.jpg)
ALUMINIUM
![](/wp-content/uploads/2023/10/PLASTICO.jpg)
PLASTIC
![](/wp-content/uploads/2023/10/COMPOSTABLE.jpg)
COMPOSTABLE
Materials
A machine for three types of capsules. Boxes that seek maximum protection, resistance and product presentation.
![](/wp-content/uploads/2023/10/ALUMINIO.jpg)
ALUMINIUM
![](/wp-content/uploads/2023/10/PLASTICO.jpg)
PLASTIC
![](/wp-content/uploads/2023/10/COMPOSTABLE.jpg)
COMPOSTABLE
Mosaic Twist
An efficient distribution that reduces the space between the capsules and reduces the size of the packaging.
![DZ MOSAICO](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-MOSAICO.png)
CHARACTERISTICS
Cases
I+DELTA BOX DZ DUO TWIST works with three types of iron-on cases according to the needs of protection, ease of closure and accessibility to the capsules.
![DZ DUO TWIST_TIPO A](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-DUO-TWIST_TIPO-A.jpg)
TYPE A
Reduces glue spots without compromising case integrity.
![DZ DUO TWIST_TIPO B](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-DUO-TWIST_TIPO-B.jpg)
TYPE B
![DZ DUO TWIST_TIPO C](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-DUO-TWIST_TIPO-C.jpg)
TYPE C
Optionals
Choose the optional ones that best suit your needs:
Interseparator
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-INTERSEPARADOR.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-INTERSEPARADOR.jpg)
COMPATIBLE WITH STAR AND TWIST
It provides stability at the different heights of the case, protecting the capsules and providing stability to the plant.
Capsule case in packaging up to 4 heights
![DZ DUO TWIST_COMPOSICION](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-DUO-TWIST_COMPOSICION.jpg)
Specifications
Electrical installation
3P + N + TT
Phase voltage:
400 VAC
Minimum cable section
10mm
Electric power supply
15 kW
Dimensions (L x W x H)
6066 x 2831 x 2768 mm
Weight:
4800 kg
Air consumption:
650 l/min
Outlet air pressure:
6 bar
technical information
Electrical installation
3P + N + TT
Phase voltage:
400 VAC
Minimum cable section
10 mm
Power supply:
15 kW
mechanical information
Dimensions (L x W x H)
6066 x 2831 x 2768 mm
Weight:
4800 kg
pneumatic information
Air consumption:
650 l/min.
Outlet air pressure:
6 bar
DZ-DUO TWIST
400/500 cap/min case.
![](/wp-content/uploads/2023/10/DZ_TipoA.jpg)
![](/wp-content/uploads/2023/10/DZ_TipoC.jpg)
CASES
Type A
TYPE B
TYPE C
![DZ-4-ALTURAS-TIPO-B](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-4-ALTURAS-TIPO-B.jpg)
HEIGHT
Up to 4 heights
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ_mosaico.jpg)
MOSAIC
Twist (5x2)
![](/wp-content/uploads/2023/10/DZ_Opcional.jpg)
OPTIONAL
Interlayer
DZ-DUO TWIST
CASES
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ_TipoA.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ_TipoB.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ_TipoC.jpg)
HEIGHTS
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ-4-ALTURAS-TIPO-B.jpg)
MOSAIC
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ_mosaico.jpg)
OPCIONES
![](https://www.imasdsl.com/wp-content/uploads/2023/10/DZ_Opcional.jpg)
