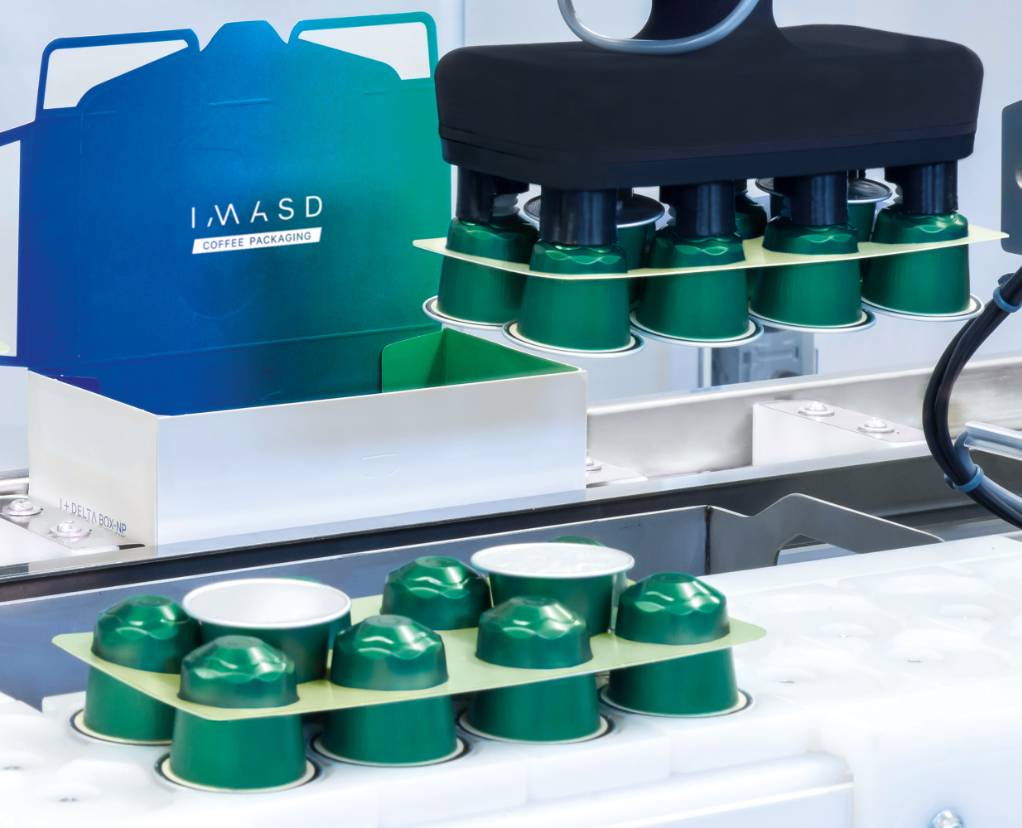

NP-LITE STAR
![NP LITE STAR](https://www.imasdsl.com/wp-content/uploads/2023/10/NP-LITE-STAR-3.jpg)
Cartoner with a rate of 200/250 capsules/minute.
1 height packaging
Star Mosaic Presentation
1 Height
Star Mosaic
![NP LITE STAR](https://www.imasdsl.com/wp-content/uploads/2023/10/NP-LITE-STAR-3.jpg)
NP-LITE STAR
It works with 1-height cases, in star mosaic and a rate of 200/250 cap/min.
![LITE-2](https://www.imasdsl.com/wp-content/uploads/2023/10/LITE-2-1.png)
Type of capsules
Models
![](/wp-content/uploads/2023/10/NP.jpg)
NESPRESSO
![](/wp-content/uploads/2023/10/TU-CAPSULA.jpg)
YOUR CAPSULE
Models
It contains the main capsule models on the market, adapting to specific formats and sizes.
![](/wp-content/uploads/2023/10/NP.jpg)
NESPRESSO
![](/wp-content/uploads/2023/10/TU-CAPSULA.jpg)
YOUR CAPSULE
Materials
![](/wp-content/uploads/2023/10/ALUMINIO.jpg)
ALUMINUM
![](/wp-content/uploads/2023/10/PLASTICO.jpg)
PLASTIC
![](/wp-content/uploads/2023/10/COMPOSTABLE.jpg)
COMPOSTABLE
Materials
A machine for three types of capsules. Boxes that seek maximum protection, resistance and product presentation.
![](/wp-content/uploads/2023/10/ALUMINIO.jpg)
ALUMINIUM
![](/wp-content/uploads/2023/10/PLASTICO.jpg)
PLASTIC
![](/wp-content/uploads/2023/10/COMPOSTABLE.jpg)
COMPOSTABLE
Star Mosaic
Great protection and security for the capsule and coffee with an attractive and comfortable presentation.
![MOSAICO ESTRELLA](https://www.imasdsl.com/wp-content/uploads/2023/10/MOSAICO-ESTRELLA.png)
CHARACTERISTICS
Cases
![NP LITE STAR_TIPO B](https://www.imasdsl.com/wp-content/uploads/2023/10/NP-LITE-STAR_TIPO-B-1.jpg)
Optional
Choose the optional ones that best suit your needs:
Mesh Separator
![](https://www.imasdsl.com/wp-content/uploads/2023/10/Separador-Mallado.jpg)
The mesh separator prevents capsules from moving and touching each other during transport. It also improves the presentation of the product thanks to its honeycomb shape.
![](https://www.imasdsl.com/wp-content/uploads/2023/10/Separador-Mallado.jpg)
COMPATIBLE WITH STAR MOSAIC
The mesh separator prevents capsules from moving and touching each other during transport. It also improves the presentation of the product thanks to its honeycomb shape.
Capsule case in 1-height packaging
I+DELTA BOX NP LITE STAR is compatible with 1-height cases with a capacity of 10 to 11 capsules per case.
![NP LITE STAR](https://www.imasdsl.com/wp-content/uploads/2023/10/NP-LITE-STAR-3.jpg)
Specifications
DIMENSIONS
Technical information
Electrical installation
3P + N + TT
Phase voltage:
400 VAC
Minimum cable section
10 mm
Electrical power supply:
15 kW
Mechanical Information
Dimensions (L x W x H)
3795 x 2784 x 2768 mm
Weight:
4250 kg
Pneumatic Information
Air consumption
500 l/min
Exhaust air pressure:
6 bar
TECHNICAL INFORMATION
Electrical installation
3P + N + TT
Phase voltage
400 VAC
Minimum cable section
10 mm
Electrical power supply
15kW
Dimensions (L x W x H)
3795 x 2784 x 2768 mm
Weight:
4250 kg
Air consumption:
500 l/min
Exhaust air pressure:
6 bar
NP-LITE STAR
200/250 cap/min case.
![NP LITE STAR_Tipo B-3](https://www.imasdsl.com/wp-content/uploads/2023/10/NP-LITE-STAR_Tipo-B-3.jpg)
CASES
Type B
![Caja_Alturas_10_NP](https://www.imasdsl.com/wp-content/uploads/2023/10/Caja_Alturas_10_NP-4.jpg)
HEIGHT
1 height
![](/wp-content/uploads/2023/10/Mosaico_STAR_2-2.jpg)
MOSAIC
Star (4x2+2)
Star (4x2+3)
![Honeycomb_STAR](https://www.imasdsl.com/wp-content/uploads/2023/10/Honeycomb_STAR-3.jpg)
OPTIONAL
Honeycomb
NP-LITE STAR
![](https://www.imasdsl.com/wp-content/uploads/2023/10/NP-LITE-STAR_Tipo-B-3.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/Caja_Alturas_10_NP-4.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/Mosaico_STAR_2-2.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/Mosaico_STAR_3.jpg)
![](https://www.imasdsl.com/wp-content/uploads/2023/10/Honeycomb_STAR-3.jpg)
